Tetracam System Multi-I/O Connections and Cables                <<< RETURN HOME

Multi-I/O CONNECTORS:  Tetracam systems contain two types of I/O connections.  These are discreet IO connections and Multi-IO connections.  The ADC Micro, ADC Snap and Mini-MCA systems (shown immediately below) provide IO connections through a 16-pin Hirose circular or 16-pin flat edge Multi-IO connector (see example Hirose Multi-IO circular connector at right with pin outs to the right of that).  Whether the Multi-IO connectors are circular connectors or flat edge connectors, the pin outs in each of these Multi-IO connectors have similar functions.

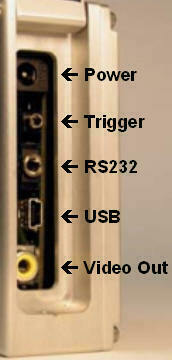

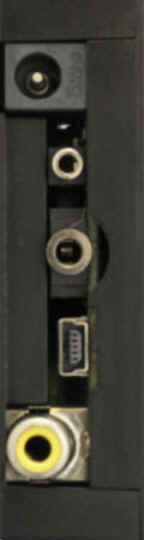

Three other Tetracam systems (the ADC, ADC Air and ADC Lite shown below and to the right) possess discreet IO connections.   These supply power, an external trigger pulse, RS232 serial interface signals, USB interface signals and video.   Of these three systems, the ADC and ADC Air have both discreet IO connections and Multi-IO connections (see system connectors pictured below those previously referenced).   The pin outs in each of these Multi-IO connectors also have similar functions to systems with multi-IO connectors alone.  Only the ADC Lite lacks a Multi-IO connector (externally).  A Multi-IO jack is available inside the ADC Lite for custom applications.



Systems with Multi-I/O Connections

Systems with Discreet I/O Connections

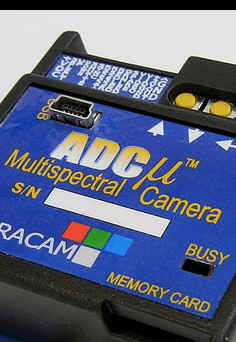

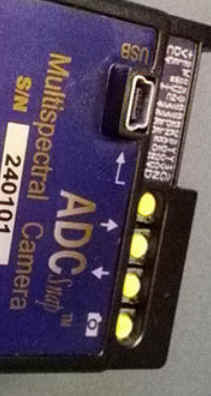

ADC Micro (Flat Edge Connector) ADC Snap (Flat Edge Connector) Mini-MCA (Hirose Circular Connector)

ADC

 ADC Air

ADC Lite

Systems with Discreet I/O Connections and also Multi-I/O Connectors

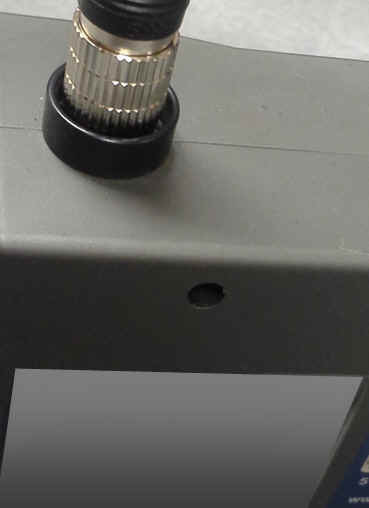

ADC (Hirose Circular Connector in shutter)

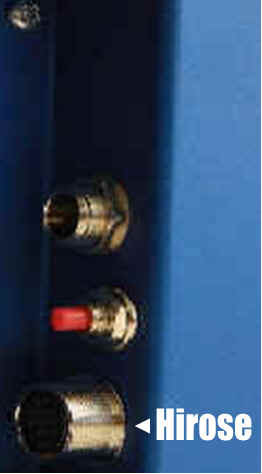

ADC Air (Hirose Circular Connector)

ADC Lite (Internal only)

No external

Multi-IO

connection

available





Multi-I/O CABLES:   Cables are available from Tetracam (such as the one pictured below) to connect Multi-IO connectors on Tetracam systems to Multi-IO connector test boxes or to un-terminated wires for connections to other user equipment.  The table below shows cables that are available to connect to Multi-IO connectors on the designated systems.

Example Cable (above) for connection between flat edge connector on ADC Micro or ADC Snap and Hirose circular connection
Multi-I/O CABLE TABLE
Tetracam Part Number Multi- I/O Cable Description

Systems Used On
ADC ADC Air ADC Lite ADC Micro ADC Snap Mini-MCA
TTC1027

6 foot Cable with Hirose circular connector on one end and un-terminated wire on other



 X X X
TTC1028

18 inch Cable with Hirose circular connector on one end and un-terminated wire on other



 X X X
TTC1029

6 foot Cable with Hirose circular connector on both ends for connection to ADC/MCA Controller Box



 X X X
TTC1030

9 foot Cable with Hirose circular connectors on both ends for connection to ADC/MCA Controller Box



 X X X
TTC1050-6

6 inch Cable with flat edge connector on one end and un-terminated wire on other



 X X
TTC1050-12

12 inch Cable with flat edge connector on one end and un-terminated wire on other



 X X
TTC1057-6

6 inch Cable with flat edge connector on one end and Hirose circular connector on other end

 X X
ADC ADC Air ADC Lite ADC Micro ADC Snap Mini-MCA
Tetracam Part Number Multi- I/O Cable Description

Systems Used On
